T238 Electric Speed Loader PRO Edition

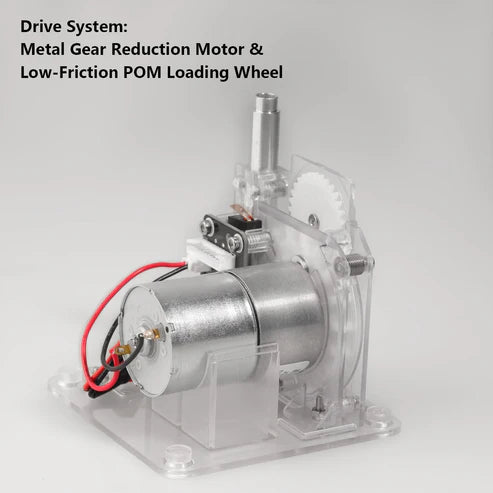

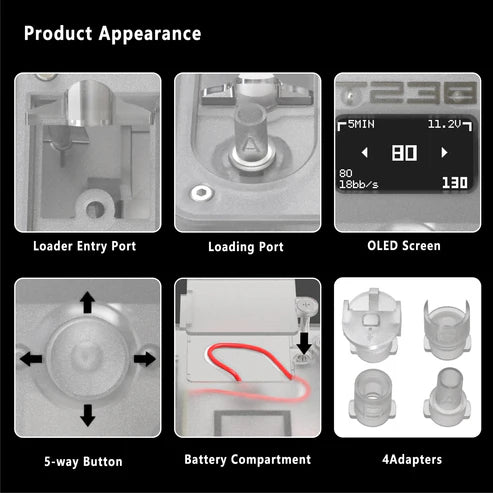

The T238 Electric BB Speed Loader PRO Edition is an smart loading system designed for Airsoft magazines. Powered by a 3S LiPo battery and high-torque motor, it enables rapid reloading for GBB, AEG, and other standard magazines. It features fixed-count loading mode and dynamic loading mode, with a 5-way button and OLED screen for customizable settings and real-time data display. Built-in jam clearing, anti-stall protection, and low-voltage cutoff ensure stable and efficient operation.

Features:

• Supports 2S/3S LiPo batteries with automatic cell count detection

• Support Manual Loading Mode and Fixed Quantity Mode

• Max loading speed: 21 BBs/sec (@12.6V)

• Max thrust: 23.5N – Easily loads PTS EPM1 250-rd magazines

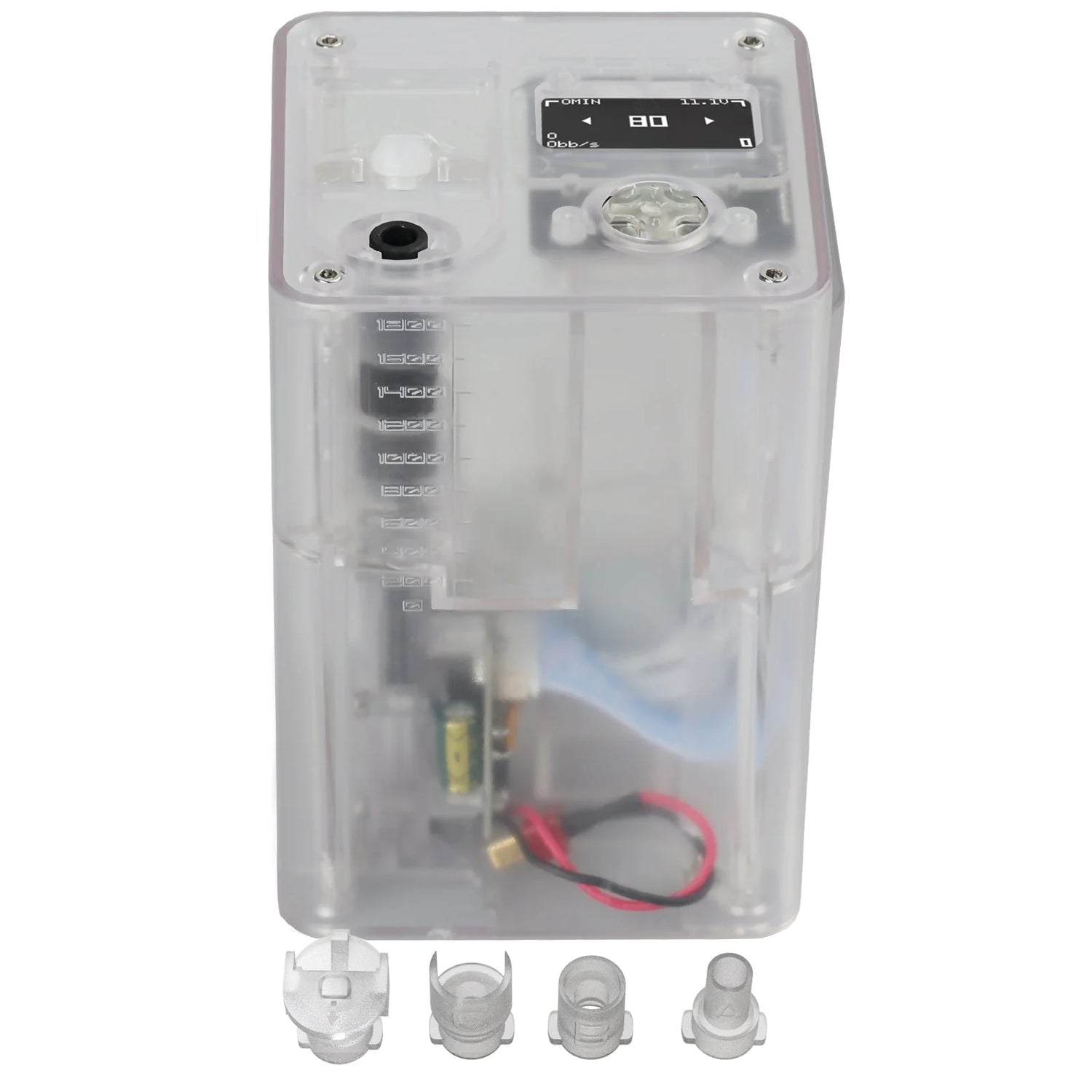

• Includes 4 nozzle adapters for GBB/AEG/Spring bolt action replica magazines

• Empty Loader alert: Buzzer + OLED warning when speed loader is running out of BBs

• Real-time stats display: Voltage/BB count/loading speed

• Anti-stall protection: Prevents gear damage during stall

• Jam clearing function: Vibrates gears to resolve jams

• Smart safeguards: Low/high voltage cutoff/Overheat protection/Auto-shutdown after prolonged inactivity


Specifications:

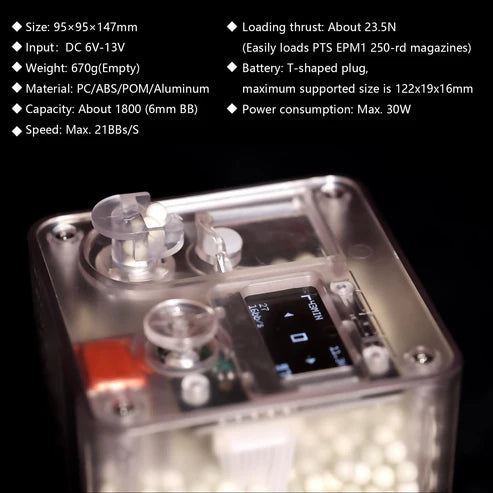

1. Basic Information

Size: 95×95×147mm
Weight: 670g (Empty)
Material: PC (Some are aluminium alloy parts)

2. Performance

• Capacity: About 1800 (6mm BB)

• Speed: 17-21BBs/S(@3S battery),  13-16BBs/S(@2S battery)

• Loading thrust: About 23.5N


3. Electrical Specifications

• Input: DC 6V-13V

• Power consumption:

  • Standby state after start-up: 0.3W @2S battery/0.46W @3S battery

  • No-load working state: 2.2W~3.7W(@2S battery)/3.3W~5.6W@3S battery

  • Maximum power: 30W

• Battery: T-shaped plug, maximum supported size is 122x19x16mm

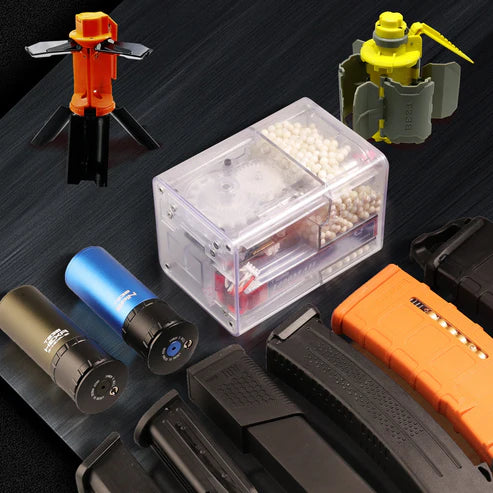

4. Compatible magazines: Various normal magazines (spring type magazines)

• Adapter A: Suitable for most AEG magazines such as AK, AR, etc

• Adapter B: Suitable for gas shotgun shell

• Adapter C: Suitable for most bolt action spring replica magazines

• Adapter D: Suitable for most GBB magazines such as WE/GHK/MWS/MARUI
