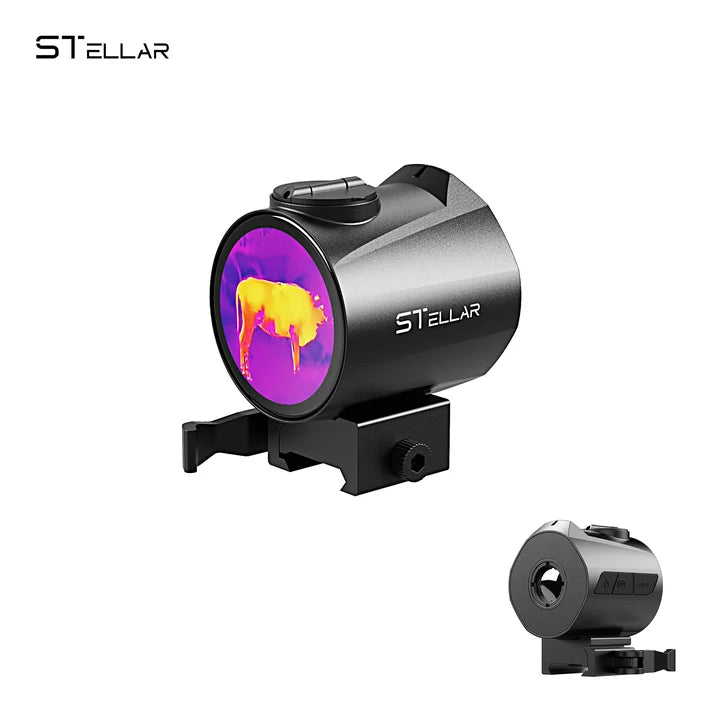

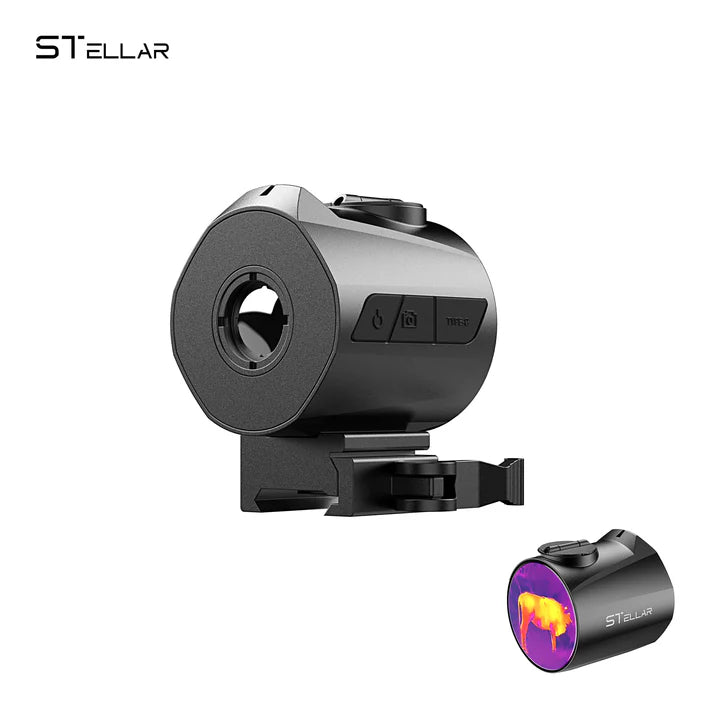

STELLAR T3-MINI Compact Thermal Imaging Scope
Regular price
£529.99
Unit price
Description
Description
- All-in-One Integrated Design: Features a built-in display, rechargeable battery, and storage, requiring no external devices or complicated setup to start viewing thermal imagery.
- Practical Thermal Performance: Equipped with a 256x192 uncooled detector and a 13mm F0.9 lens, providing a clear thermal view with a detection range up to 700m for general observation tasks.
- Built-in Media Capture: Supports both photo capture and on-board video recording directly to internal EMMC storage, allowing documentation of findings without extra gear.
-
Enhanced Viewing Utility: Includes multiple color palettes (Black/White/Red Hot, Fusion) and a cursor indicator for on-screen referencing.
Long Battery Life : Provides ≥4 ho,urs of continuous operation,An external charger (model 14280 or 16340) is required for charging. A battery charger is provided free of charge. - Rugged and Reliable: Tested to withstand 1000g/0.4ms impact vibration and operates in temperatures from -20°C to +50°C, ready for field use.
- Model: T3-MINI

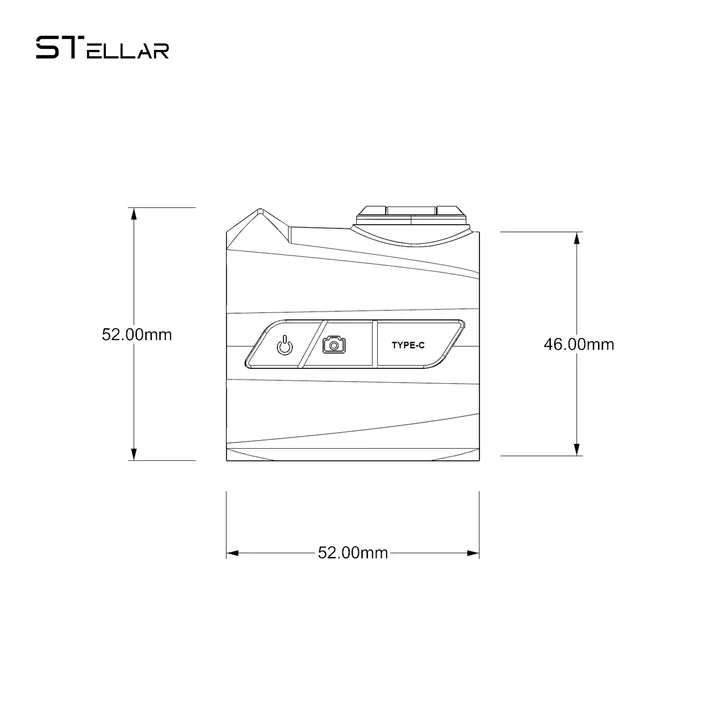

- Dimensions (L x W x H): 52 mm x 48 mm x 51 mm
- Operating Temperature: -20°C to +50°C
- Detector Type: Uncooled Focal Plane Array (FPA)
- Resolution: 256 x 192
- Frame Rate: 25 Hz
- Pixel Pitch: 12 µm
- Spectral Band: 8 µm to 14 µm
- Lens Focal Length: 13 mm, F0.9
- Field of View: 13.5° x 10.1°
- Detection Range: ≤ 700 m
- Display: 1.4-inch OLED Touchscreen, 466 x 466 resolution
- Color Palettes: Black Hot, White Hot, Red Hot, Fusion
- Features: Cursor Indicator, Adjustable Brightness
- Media Capture: Photo & On-board Video Recording
- Storage: Built-in EMMC
- Battery: Rechargeable 16340 Li-ion
- Battery Life: ≥ 4 hours (at 25°C)
- Shock Resistance: 1000g / 0.4ms
