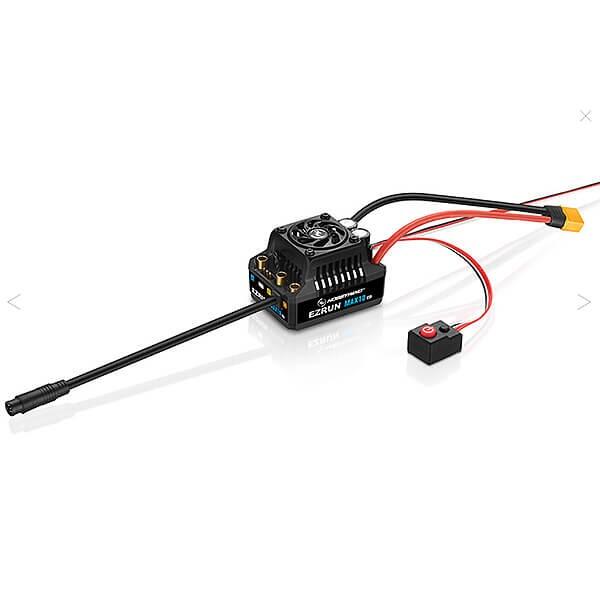

Hobbywing EZRUN MAX10 G2 - 140A ESC

Type:

Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Yes

Specifications:

Cont./Peak Current: 140A/880A
Input Voltage: 2-4S LiPo
BEC Output: 6/7.4V, 5A

Wires & Connectors:

Input Wires: Red-12AWG*1 Black-12AWG-150mm*1
Input Connectors: XT60
Output Connectors: 4.0mm Gold (Female)

Fan:

Size: 30x30x10mm
Output Wires: 5-7.4V
Input Connectors: Powered by BEC

Esc Programming Via:

SET Button on ESC: No
LED Program Box: Supported
LCD Program Box: Supported (G2)
OTA Programmer: Supported
Programming Port: Separate

Firmware:

Firmware Upgrade: Supported

Size & Weight:

Size: 53mmx39.5mmx37.2mm
Weight: 120g(w/Wires)

Applications:

Applications: SL BL Motors / SD BL Motors Vehicles: 1/10th Short Course Truck, Truck and Monster Truck
KV Rating / T Count: With 3S LiPo: KV<4000 3665 Size Motor, With 4S LiPo: KV<2600 4268 Size Motor
