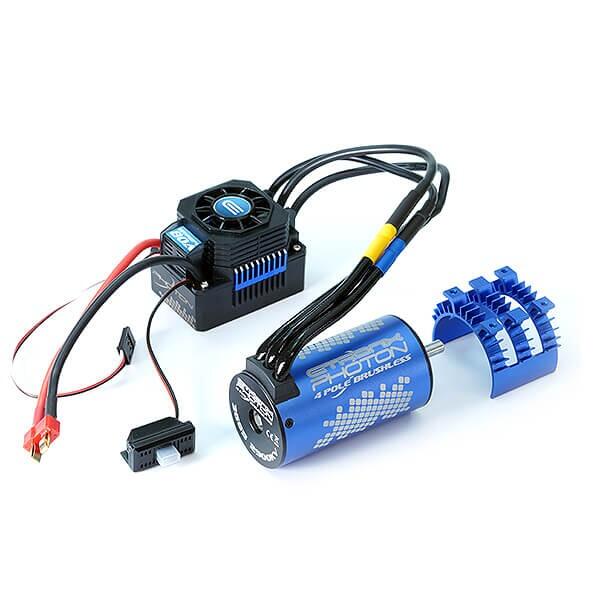

Etronix Photon 80A Brushless ESC & 2900KV 3665 Motor Combo

With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application.
With the optional programmable set up card (ET0449) the user can finely tune different parameters within the ESC to suit their particular needs.

ESC Features:

• Waterproof (without fan installed)
• 2-3S Lipo
• 6-9S NiMH/NiCd
• 3A 6.1V BEC Output
• Sensorless brushless motor
• 2S 3670 size or smaller 3000kV Motor limit
• 3S 3670 size or smaller 2500kV Motor limit
• 80A Constant current
• 480A Burst Current

ESC Specifications:

Dimensions: 51.5x38.5x38.5mm (without fan)
Weight: 84g

Motor Specifications:

KV Rating: 2900KV
Size: 3665
Max RPM: 50000
Max voltage: 14.8v
Max amps: 95A
Rotor poles: 4
Diameter: 35.5mm
Length: 64.5mm
Shaft length: 17mm
Weight: 250g
