Maxx Model CNC Hop-Up Chamber M4W for Wolverine MTW

CNC Aluminium Hop-up Chamber M4W unit is precisely machined to perform accurately and consistently on HPA MTW Milspec, Forged, Billet and MTW-9 series. The Hop-up Chamber M4W unit is built with an aluminium Rotary Dial Knob for fine hop-up adjustments, the precision Hop-up Lever and 4mm Bucking Nubs (6mm Bucking Nubs are optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot.

The Hop-up Chamber M4W unit is designed to accept the HPA MTW Engine M4 nozzle length, and fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use. The Hop-up Chamber M4W unit is wisely equipped with an interchangeable Inlet Adaptor OD11mm to ensure the hop-up unit is inserted exactly in the centre of the 11mm inner bore HPA Engine nozzle outlet without wobbling. (Inlet Adaptor OD11.5mm and OD12mm are optional)

Also mounted the removable CNC Brass Side Wings to slide smoothly into the outer barrel slots, and included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting.

Specifications:

Overall Length: 51.15mm
Overall Height: 22mm
Inlet Adaptor Outer Diameter (to fit into HPA Nozzle Outlet): 11mm
Hub Outer Diameter (to fit into Outer Barrel): 12mm
Hub Inner Diameter (to fit Nozzle): 8mm
Material: Aluminium 6061

Features:

• Machined from a solid aircraft aluminium block with tight tolerances to achieve the most accuracy, consistency, and durability
• Performed accurately and consistently on HPA MTW Milspec, Forged, Billet and MTW-9 series
• Precision Rotary Dial Knob for fine hop-up adjustments
• Re-engineered the precision Hop-up Lever and 4mm Bucking Nubs (6mm Bucking Nubs are optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot
• Removable Steel Pivot Pin for ease of setup and maintenance
• Accepted the HPA MTW Engine M4 nozzle length
• Fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use
• Wisely equipped with an interchangeable Inlet Adaptor OD11mm to ensure the hop-up unit is inserted exactly in the centre of the 11mm inner bore HPA Engine nozzle outlet without wobbling. (Inlet Adaptor OD11.5mm and OD12mm are sold separately)
• Mounted the removable CNC Brass Side Wings to slide smoothly into the outer barrel slots
• Included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting
• Equipped with 2 compression springs on top and centre to ensure the hop-up unit is seated straight and air tight during use
• Compatible with any 11mm inner bore HPA Engine nozzle outlets
• The Dual UV LED Tracer Module to glow BB in the dark ready!

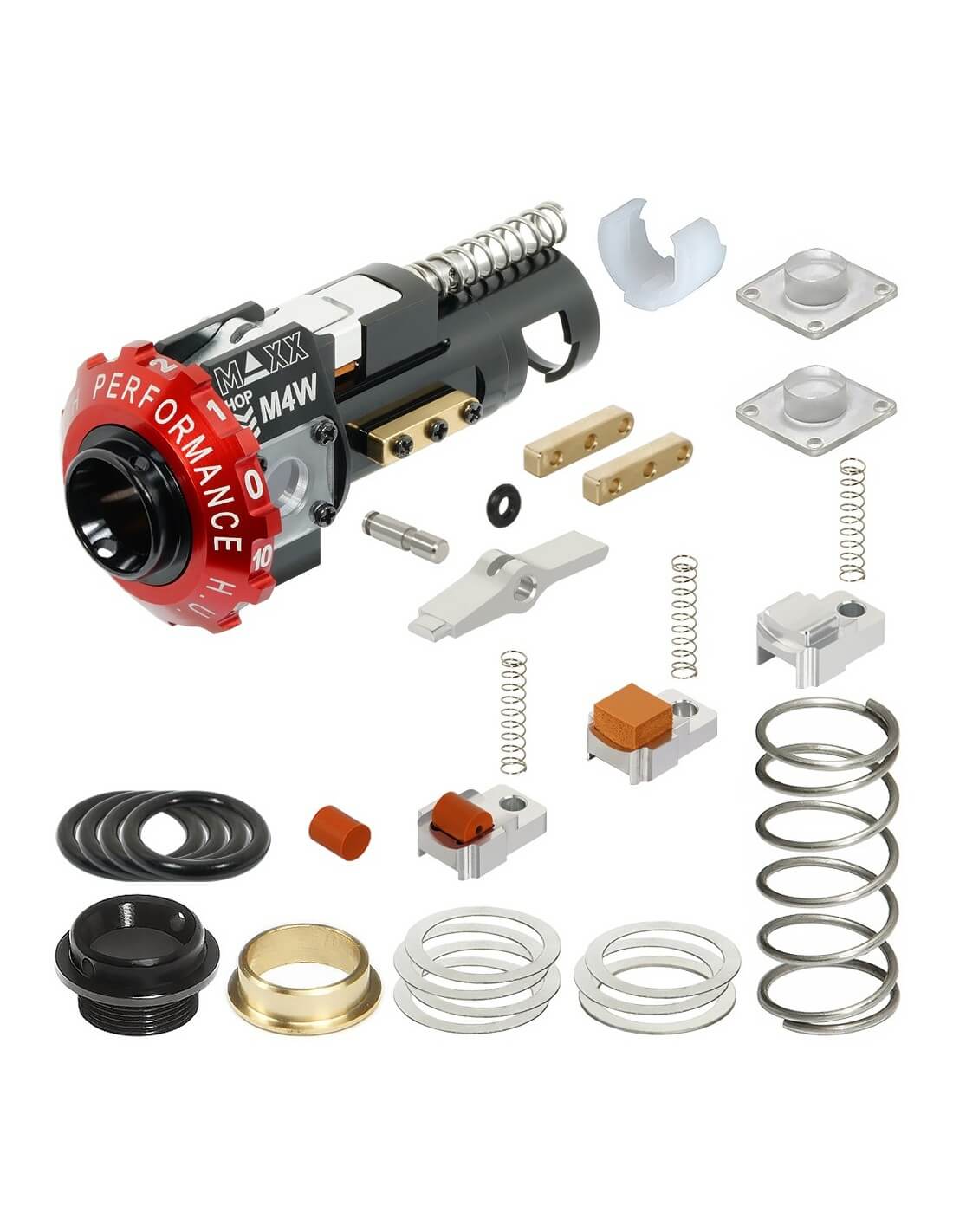

Included:

• 1x CNC Aluminium Hop-up Chamber M4W unit
• 2x CNC Acrylic Side Cover
• 2x CNC Brass 2.6mm Side Wing
• 1x CNC Steel Pivot Pin
• 1x CNC Aluminium Hop-up Lever
• 1x CNC Aluminium Soft Round Nub
• 1x CNC Aluminium Soft Flat Nub (4mm)
• 1x CNC Aluminium Hard Concave Nub (4mm)
• 3x Steel Nub Spring
• 1x CNC Steel Spring Guide
• 1x Steel Upper Compression Spring
• 1x Steel Centre Compression Spring
• 1x CNC Delrin Locking C-Clip
• 1x CNC Brass Barrel Spacer
• 1x Brass Barrel Spacer Holder O-ring
• 1x CNC Aluminium Rotary Dial Knob
• 1x CNC Aluminium Inlet Adaptor (OD11mm)
• Instruction Manuals are included
