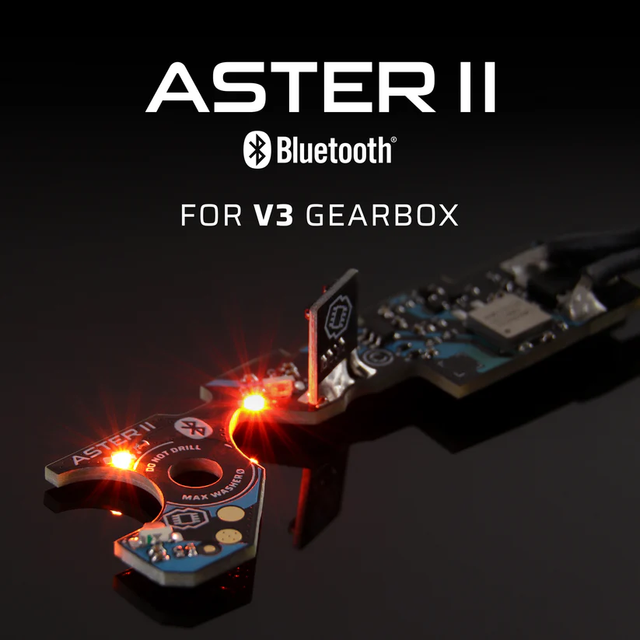

Gate ASTER II Bluetooth® EXPERT for V3 GB [AEG & HPA]

The newly released ASTER II Bluetooth® is a total game changer for V3 gearbox owners bringing a breath of fresh air and brand new capabilities to all V3 gearbox replicas both for AEG and dual solenoid HPA. With Bluetooth 5.2 technology, you have direct access to settings, AEG telemetry, and extended features with the GCS mobile device and smartwatch app. ASTER II Bluetooth® is the first such versatile unit for V3 gearboxes – compatible with both AEG and HPA. The AEG version works with both brush motors and also with brushless motors, even at 11.1 V. HPA enthusiasts, on the other hand, can connect both single solenoid valve and dual solenoid HPA engines. Adjustable trigger sensitivity, automatic Pre-cocking, Active Brake with adaptive mode and reliable optical sensors create an ideal system. The goal of creating ASTER II Bluetooth® for GB V3 was to build a versatile ETU, incorporating the latest GATE technology at a reasonable price.

Supply Voltage Range [AEG application]: 3.75 - 12.9 V

Supply Voltage Range [HPA application]: 5 - 8.6 V

Rated Current: 30 A

Current Consumption: 20 mA

Low Power Mode: 130 µA

Dimensions (Length x Width x Height): 73.5 mm x 24 mm x 12.5 mm

Finished Product Weight: 26 g

Operating Temperature Range: min. -15°C max. + 50°C

Relative Humidity: ≤ 80%
