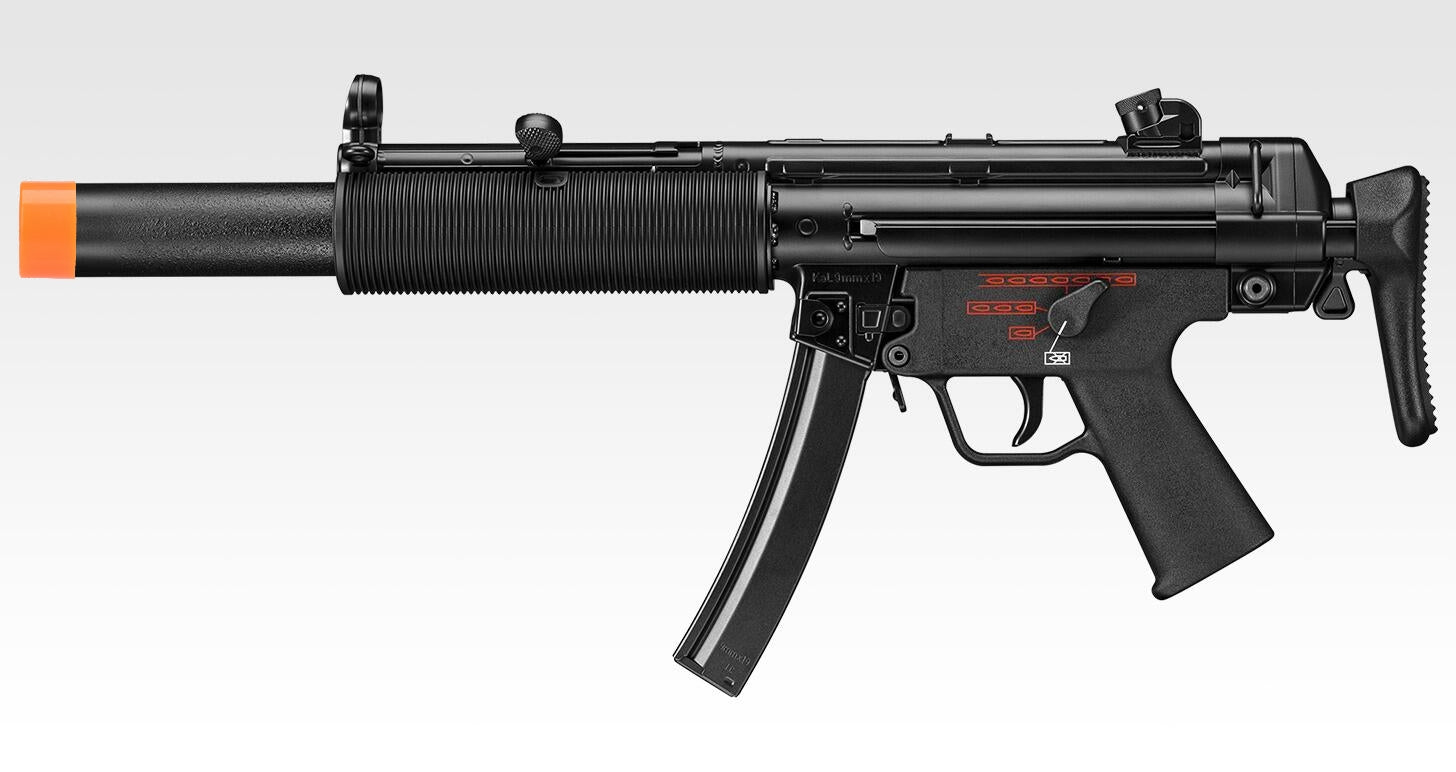

Tokyo Marui MP5 SD6 NGRS Next Gen Recoil

“MP5 SD6”, which is equipped with a silencer as standard, is now available in the next generation electric gun!

Equipped with the highly safe “M-SYSTEM,” which uses FET (electronic trigger system) and comprehensively monitors and controls the FET, FC, battery, and motor using a microcomputer. 3 burst reproduction, improved trigger response, compatibility with MS•Li-Po batteries, and thorough pursuit of realism in the exterior and operability.

Equipped with shoot & recoil engine

By pulling the trigger, a 300g weight imitating a bolt is activated at the same time as the gun is fired, and the intense recoil generated inside the main body is transmitted throughout the body. It is also equipped with an auto-stop system that stops firing when the magazine is empty, and a bolt release mechanism that releases the auto-stop by pulling the bolt handle. This model pursues the reality of operation and operability.

Reproduce 3 bursts

In addition to semi/full auto firing, it perfectly reproduces 3 burst firing that fires 3 shots when you pull the trigger. The selector, which can be operated from either the left or right, is linked by a shaft that passes through the mechanical box, achieving smooth rotation and a solid click feeling.

Equipped with FET

Equipped with FET (electronic switch) instead of conventional mechanical switch. Compared to mechanical switches, there is less current loss generated at the contact point, and the response from pulling the trigger to firing the BB bullet is improved.

M-SYSTEM

We have newly developed “M-SYSTEM,” a microcomputer (MCU = microcontroller unit) that comprehensively monitors and controls FET, FC (Fire Control), battery, and motor. It not only monitors information from seven sensors and various voltages to switch shooting modes and control motor rotation, but also has safety features such as detecting damage or abnormalities in various parts and stopping operation. It has become a system.

Silencer standard equipment

The aluminium-cut silencer reproduces the rough textured finish. Internal sound-absorbing material reduces firing sound. Also, by removing the silencer, you can install a 14mm reverse threaded muzzle option.

Pursuing the reproducibility of appearance

Many metal parts, such as the upper receiver, are powder-coated with a texture that is close to the real thing. The hand guard is made of a resin material with a rubber-like texture, and the lower receiver, butt plate, selector, and cocking lever are molded from reinforced nylon resin, which is similar to the real material.

Increased rigidity in various parts

By reviewing the component structure of the cocking handle and adopting reinforced nylon resin, it is possible to hit the locked cocking lever to return it, commonly known as “HK slap.” In addition, the sliding retractable stock has a new structure, making it more realistic and rigid.

Realistic pressed magazine

The number of bullets is 72. Comes with a magazine that uses a pressed steel outer case with welded seams all around, just like the real thing. *Magazine is not compatible with other series MP5 models such as electric gun standard type.

Basic Information

• Equipped with shoot & recoil engine
• Equipped with auto stop system
• Equipped with variable hop-up system
• Full auto (repeat) / 3 burst (3 shots in succession) / Semi-auto (single shot) switching type

Specifications:

Full Length: 600 mm / 760 mm (when stock is extended)
Gun Length: 229mm
Weight: 3,180g (empty magazine, excluding battery)
Bullet: 6mm BB (0.2~0.28g)
Power Source: 8.4V NiMH 1300mAh Mini S battery (*1) / MS•Li-Po battery [Standard type] (*2)
Number of Bullets: 72 shots

*1: To charge the battery, please use a charger specifically designed for 8.4V nickel metal hydride batteries. *2: To charge the battery, please use a charger and safety bag specifically designed for MS•Li-Po batteries.

Included:

• MP5 SD6 body, magazine (72 rounds)
• Rear sight adjustment tool
• Ni-MH Mini-S battery cover
• MS/Li-Po standard type battery cover
• Coupler cover
• Protective cap
• Handling precautions/instruction manual
• Hex wrench
• Charger
• Charging rod
• Cleaning rod
• BB bullet (0.2g/200 shots)
