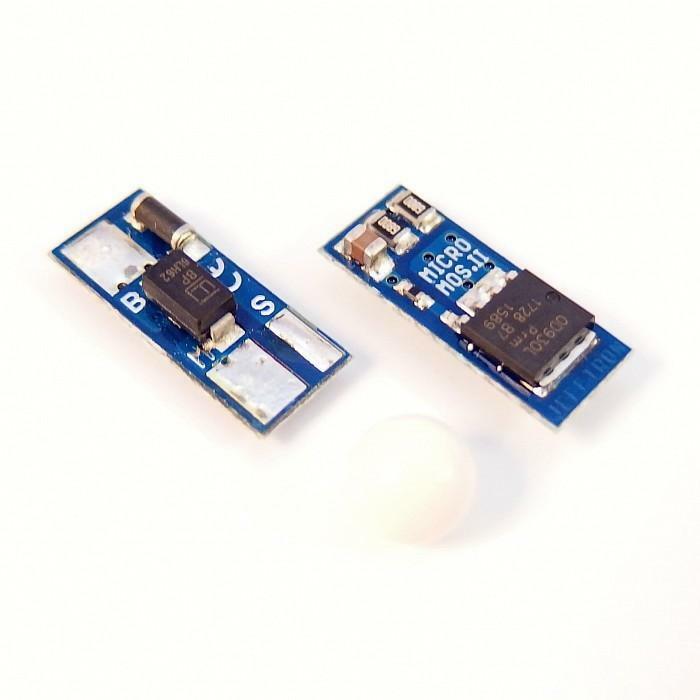

Jefftron Micro Mosfet II - Bare Unit

Device increases gun rate of fire and battery holds longer, than with basic wiring.

Specifications:

• Very small device dimension, it fits nearly everywhere
• Devices without wires, you can use max. 1,5qmm (AWG16) power wires and 0,5qmm (AWG20) signal wires
• suitable for service center, if you are not familiar with soldering to the circuit board, choose device with wiring and accessories.

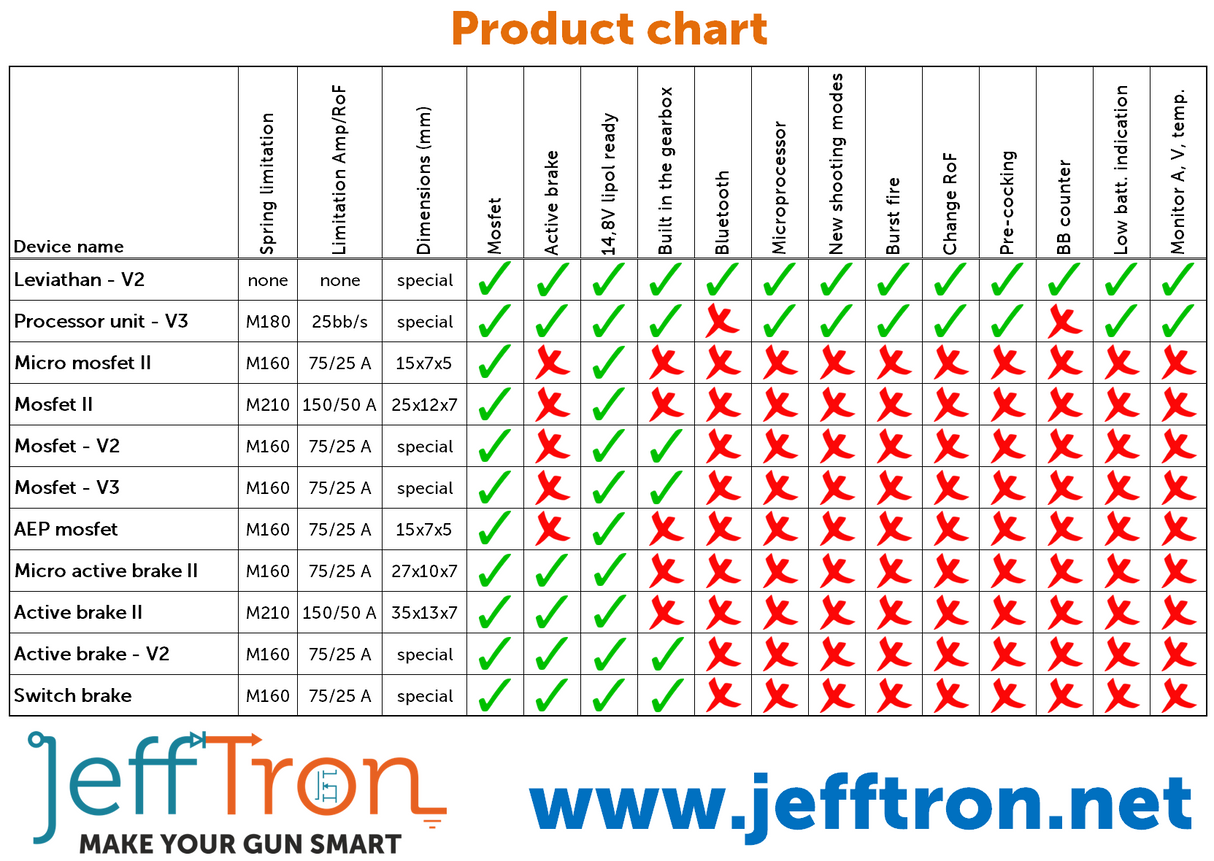

• Designed for spring up to M160 (equivalent for current 75A single shot fire or 25A burst fire for max. 30s). For higher load please use Mosfet II
• Specified for common batteries up to 17V (Ni-xx 8.4 – 12V, lipol 7.4 – 14.8V)

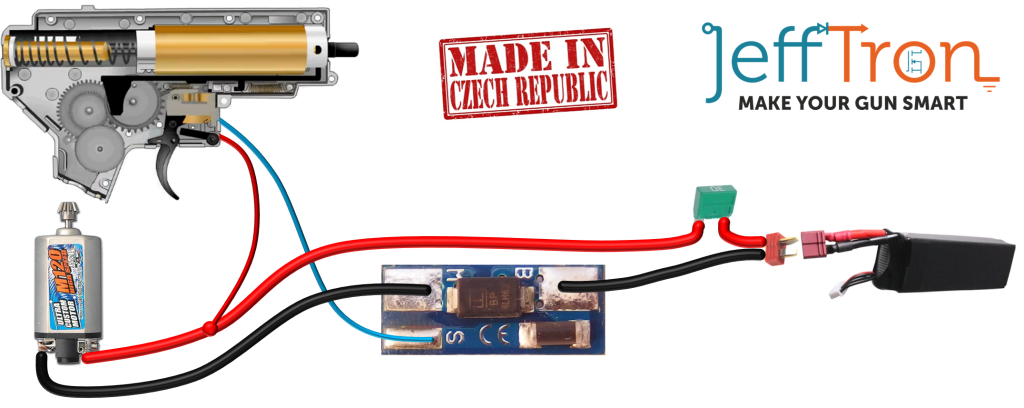

• 5 wires connection
• positive wire isn’t connect into device
• device size 15x7x5mm
• No current consumption in the idle mode
• No sparking on switch contacts
• In auto fire mode piston stops in random position due the mechabox design
• For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox

Device Instructions: you can download installation manual in English here [PDF, 673.34 kB]

Included:

• Device,
• Heat shrink tube
• Installation manual in English

WARNING: Installation of this device leave to expert, who could solder and disassemble airsoft gun. Never user soldering gun!
