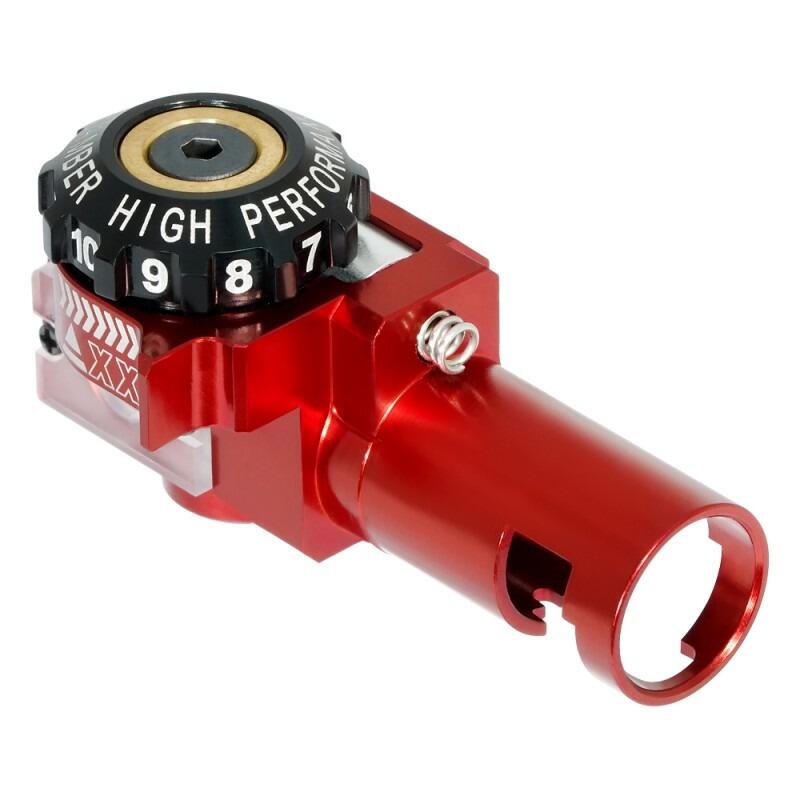

Maxx Model CNC Hop-Up Chamber for ASG Scorpion EVO-3

CNC Aluminium Hop-up Chamber EVO unit is precisely machined to perform accurately and consistently on the ASG CZ Scorpion EVO-3 Airsoft Rifles. The Hop-up Chamber EVO unit is built with a Precision Aluminium Rotary Dial Knob for fine hop-up adjustments and equipped with 4mm Flat Soft Bucking Nub (6mm Bucking Nub is optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot. The Hop-up Chamber EVO unit is designed to accept the 18.5mm nozzle length, and fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use. The Hop-up Chamber EVO unit is wisely built with a self-centering inlet to ensure the hop-up unit is inserted exactly in the centre of the 11.5mm inner bore ASG EVO-3 gear box outlet without wobbling. Also included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting.

Specifications:

Overall Length: 47mm
Overall Height: 26.25mm
Inlet Diameter: 11.5mm
Hub Outer Diameter (to fit into Outer Barrel): 12mm
Hub Inner Diameter (to fit Nozzle): 7mm
Material: Brass/Aluminium 6061

Features:

• Machined from a solid aircraft aluminium block with tight tolerances to achieve the most accuracy, consistency, and durability
• Performed accurately and consistently on the ASG 2018 CZ Scorpion EVO-3 Airsoft Rifles
• Built-in Precision Aluminium Rotary Dial Knob for fine hop-up adjustments
• Pre-installed 4mm Flat Soft Bucking Nub (6mm Bucking Nub is optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot
• Accepted the 18.5mm nozzle length
• Fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use
• Wisely built with a self-centering inlet to ensure the hop-up unit is inserted exactly in the centre of the 11.5mm inner bore ASG EVO-3 gear box outlet without wobbling
• Included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting
• The Dual UV LED Tracer Module to glow BB in the dark ready!

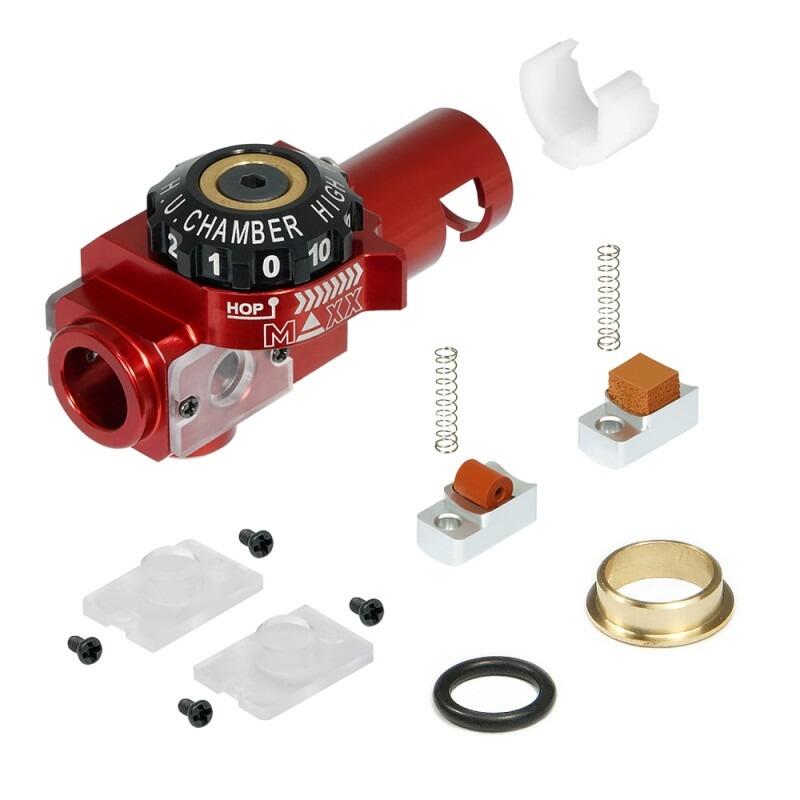

Includes:

• 1x CNC Aluminium Hop-up Chamber EVO unit
• 1x Dual UV LED Boards and Module set (optional)
• 2x Strong Clear Vinyl Cover set
• 1x CNC Aluminum Soft Round Nub
• 1x CNC Aluminum Soft Flat Nub (4mm) (Pre-installed)
• 2x Steel Nub Spring
• 1x Steel Compression Spring
• 1x Brass Dial Bushing
• 1x Dial O-ring
• 1x CNC Precision Aluminium Rotary Dial Knob
• 1x CNC Delrin Locking C-Clip
• 1x CNC Brass Barrel Spacer
• 1x Brass Barrel Spacer Holder O-ring
